Growth simulation with refineGEMs

The growth submodule provides a number of functionalities to analyse and simulate the growth of a model including:

  1. actual growth simulation on different media

  2. auxothrophy simulation

  3. simulating growth on different elemental sources, e.g. a C-source test

  4. model the minimal medium for a model

Growth

Using growth_analysis(), the growth between any number of models and media can be simulated. For easier use, the media can be describes using a config_media.yaml file, which in turn can be used as input for the function. The media configuration file allows for many kinds of manipulation of the media from the in-build database, as well as adding additional media from external sources to the list of media to be tested.

Hint

More information about the in-build media can be found under Media & Subsets.

Furthermore, a supplementation mode can be set to ensure the model grows on the given medium. Supplemented compounds are reported at the end to ensure total transparency.

Note

Currently implemented supplementation mode (in addition to none) include:

  • std/standard: supplementation based on standard, non-zero flux medium compounds

  • min/minimal: supplementation from the minimal medium the model is able to grow on

The function return the report, plot or both depending on the input for retrieve. The report contains the growth value and doubling times, supplemented compounds and compounds for which no exchange reactions was found in the model. The report also proves functions for further visualisation of these values,including a tabulary and graphical display.

Auxothrophy

The function test_auxotrophies() tests the auxothrophies for the 20 proteinogenic amino acids for a model, a set of media and supplement modes.

Iteratively for each amino acids, a sink reactions for that particular amino acids is temporarily added to the model and set as the objective value. In the case the model has an exchange reaction for the amino acids, it is disabled to ensure, the only possible way for the model to have the amino acids is by producing it itself. The objective values for the added sink reaction are reported. Values higher than the growth threshold signify the ability of the model to produce the corresponding amino acids by itself (the model is auxotroph for the amino acid).

The function returns a report, which in turn can be e.g. visualised as a heatmap.

Below, an examplary heatmap based on the Master Thesis of Carolin Brune (…) for Klebsiella pneumoniae MD01 can be seen. The model is able to produce all amino acids and therefore is autotroph for all amino acids.

../_images/MT_CB_Kpneu_auxo.png

Source test

Using the test_growth_with_source() function, the user can simulate the growth of a model on a medium while varying the source of a given element, e.g. carbon. Using the parameter substances, alternative sources can be set. If none are given, the program tests for all available sources in the in-build database for the given element.

Iteratively, the function changes all metabolites containing the given element with the next in list. The model is optimised and the objective values for the BOF ist returned for all the different compounds.

Note

For sensible test results, the starting medium should provide all other element necessary for the growth of the model as other compounds. Only under these conditions can the results of the source test savely discussed in the context of changung a single source only.

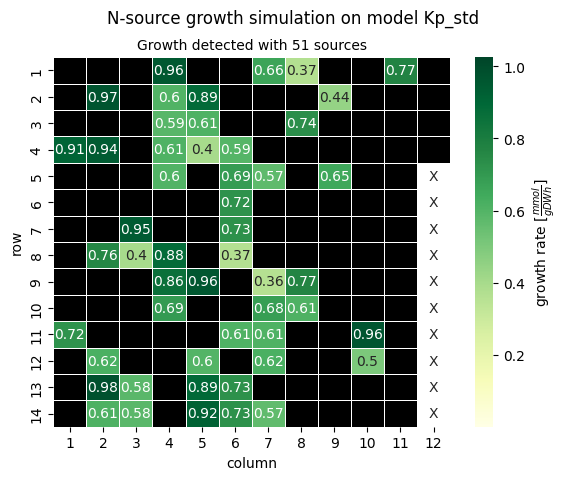

Below you can see the examplary results for a Klebsiella pneumoniae model with a supplemented M9 medium. The supplemented M9 medium contains all trace elements the bacterium needs to grow e.g. iron and a single nitrogen source that is swapped out during the test. Since the original nitrogen source was ammonia, swapping it out does not eliminate another element from the medium. The information, which cell contains which source, is saved in a seperate table to ensure good readability of the graphic.

../_images/N-source.png

Minimal medium

Using model_minimal_medium(), a minimal medium (composition) can be calculated.

Since the description of a minimal medium can vary, refineGEMs provides different ways to calculate one, set using the parameter objective:

  • flux: find the minimal fluxes for the current medium

  • medium: find the minimal number of compounds based on the current medium

  • exchanges: find the minimal number of compounds for a medium based on the exchange reactions in the model

Note

The function always returns a single solution, but there may be more than one solution, especially for the third case.
